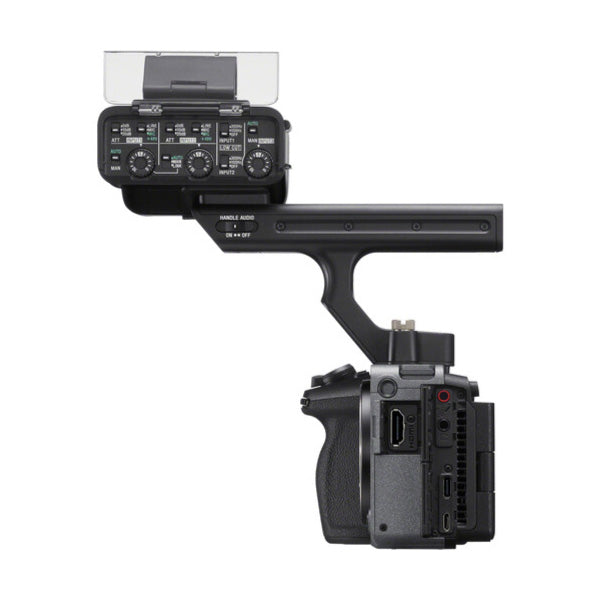

| Model Name | Sony FX30 Cinema Line Camera with XLR Handle Unit |
| Lens Mount | Sony E |
| Sensor Resolution | Actual: 27 Megapixel |
| Effective: 26 Megapixel (6192 x 4128) | |
| Image Sensor | 23.3 x 15.5 mm (APS-C) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| ISO Sensitivity Range | 100 to 32,000 (Extended: 50 to 102,400) |
| Internal Recording Modes | XAVC HS 4:2:2 10-Bit |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps | |
| XAVC S-I 4:2:2 10-Bit | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps | |
| XAVC S | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/120/240 fps | |
| XAVC Proxy | |
| 1920 x 1080 | |
| 1280 x 720 | |
| External Recording Modes | 4:2:2 10-Bit via HDMI |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| ProResRAW 16-Bit via HDMI | |
| 4672 x 2628 at 23.98/25/29.97/50/59.94 fps | |
| Media/Memory Card Slot | Dual Slot: CFexpress Type A / SD |
| Video I/O | 1x HDMI 2.0 Output |
| Mobile App Compatible | No |
| Battery Type | Sony Z-Series |
| Imaging | |
| Lens Mount | Sony E |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Actual: 27 Megapixel |
| Effective: 26 Megapixel (6192 x 4128) | |
| Image Sensor | 23.3 x 15.5 mm (APS-C) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | No |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 30 Seconds in Photo Mode |
| 1/8000 to 1/4 Second in Video Mode | |
| ISO Sensitivity Range | 100 to 32,000 (Extended: 50 to 102,400) |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2500 to 9900K |
| Presets: Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Incandescent, Shade, Underwater | |
| Video Capture | |
| Internal Recording Modes | XAVC HS 4:2:2 10-Bit |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps | |
| XAVC S-I 4:2:2 10-Bit | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps | |
| XAVC S | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/120/240 fps | |
| XAVC Proxy | |
| 1920 x 1080 | |
| 1280 x 720 | |
| External Recording Modes | 4:2:2 10-Bit via HDMI |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| ProResRAW 16-Bit via HDMI | |
| 4672 x 2628 at 23.98/25/29.97/50/59.94 fps | |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | HDR-HLG, S Cinetone, Sony S-Log 3 |
| Built-In Microphone | Stereo |
| Audio Recording | 2-Channel 24-Bit LPCM Audio |
| 4-Channel 24-Bit LPCM Audio | |
| IP Streaming | No |
| Still Image Capture | |
| Image Sizes | 0.126388888888889 |
| 26 MP (6192 x 4128) | |
| Aspect Ratio | 3:2, 16:9 |
| Image File Format | HEIF, JPEG, Raw |
| Bit Depth | 14-Bit |
| Interface | |
| Media/Memory Card Slot | Dual Slot: CFexpress Type A / SD |
| Video I/O | 1x HDMI 2.0 Output |
| Audio I/O | 2x XLR / 1/4 TRS Combo Microphone (+48 V Phantom Power) Input on Included Handle |
| 1x 1/8 / 3.5 mm TRS Stereo Microphone Input on Camera Body | |
| 1x 1/8 / 3.5 mm TRS Stereo Headphone Output on Camera Body | |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x Sony Multi/Micro-USB (Timecode) |
| 1x USB-C (USB 3.2 / 3.1 Gen 2) | |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Control |
| Bluetooth 5.0 | |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type | Articulating Touchscreen LCD |
| Display Size | 3 |
| Resolution | 2,360,000 Dot |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus, Single-Servo AF, Touch AF & Shutter |
| Autofocus Points | Video |
| Phase Detection: 495 | |
| Autofocus Sensitivity | -3 to +20 EV |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| General | |
| Battery Type | Sony Z-Series |
| Shoe Mount | 1x Intelligent Hot Shoe |
| Tripod Mounting Thread | 1x 1/4-20 Female (Bottom) |
| Accessory Mounting Thread | 5x 1/4-20 on Camera Body |
| 3x 1/4-20 on Included Handle | |
| Material of Construction | Magnesium Alloy |
| Dimensions (W x H x D) | 5.1 x 3.1 x 3.3 / 129.7 x 77.8 x 84.5 mm |
| Weight | 1.2 lb / 562 g (Body Only) |
| Packaging Info | |
| Package Weight | 3.315 lb |
| Box Dimensions (LxWxH) | 10.5 x 8.9 x 5.6 |
| Key Features | |
| Type | APS-C Cinema Camera |
| Sensor | 26MP APS-C Exmor R (Super 35) |
| Mount | Sony E-Mount |
| Video | 4K Super35 up to 120p / 10-bit 4:2:2 |
| Stabilization | Active Mode + Electronic |
| Audio | XLR Top Handle Included |
| Autofocus | Real-time Eye / Face AF |
| ISO | Dual Base ISO |
| Weight | Approx. 646g (with handle) |
| Whats in the Box | |
| Camera Body x1 | |
| Top Handle with XLR x1 | |
| Battery Pack x1 | |
| USB-C Cable x1 | |
| Shoulder Strap x1 | |
| Body Cap x1 | |
| User Manual x1 | |
