Amaran Pano 60c RGBWW LED Panel Kit
Why buy from Camerahaus
Official Amaran Warranty
Authentic & PH-backed
Pay via GCash / Card / Bank
Secure local payments
Store Pickup / Branch Pickup Available
Convenient handover
See branches & service
No reviews yet
Be the first to share your thoughts on Amaran Pano 60c RGBWW LED Panel Kit.

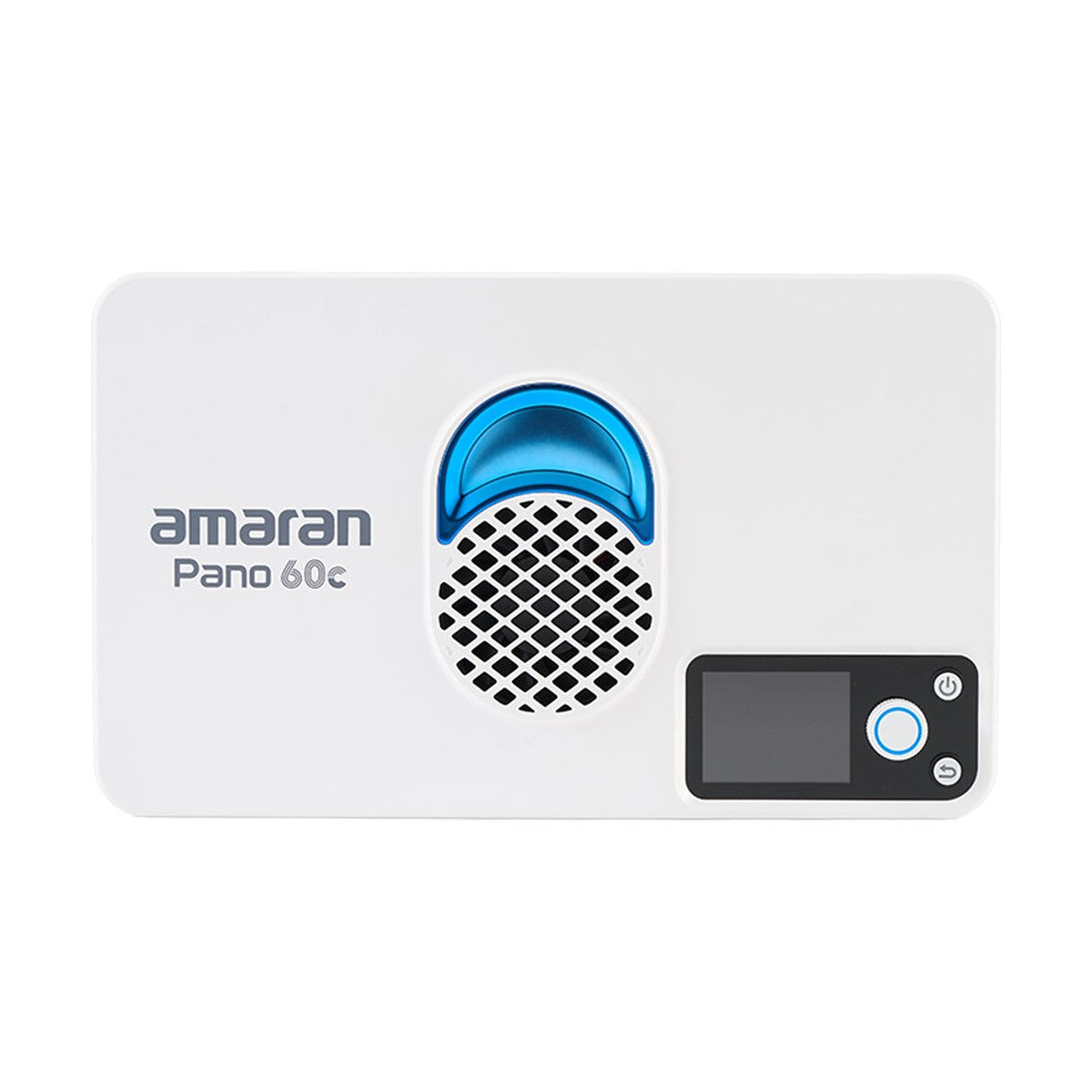

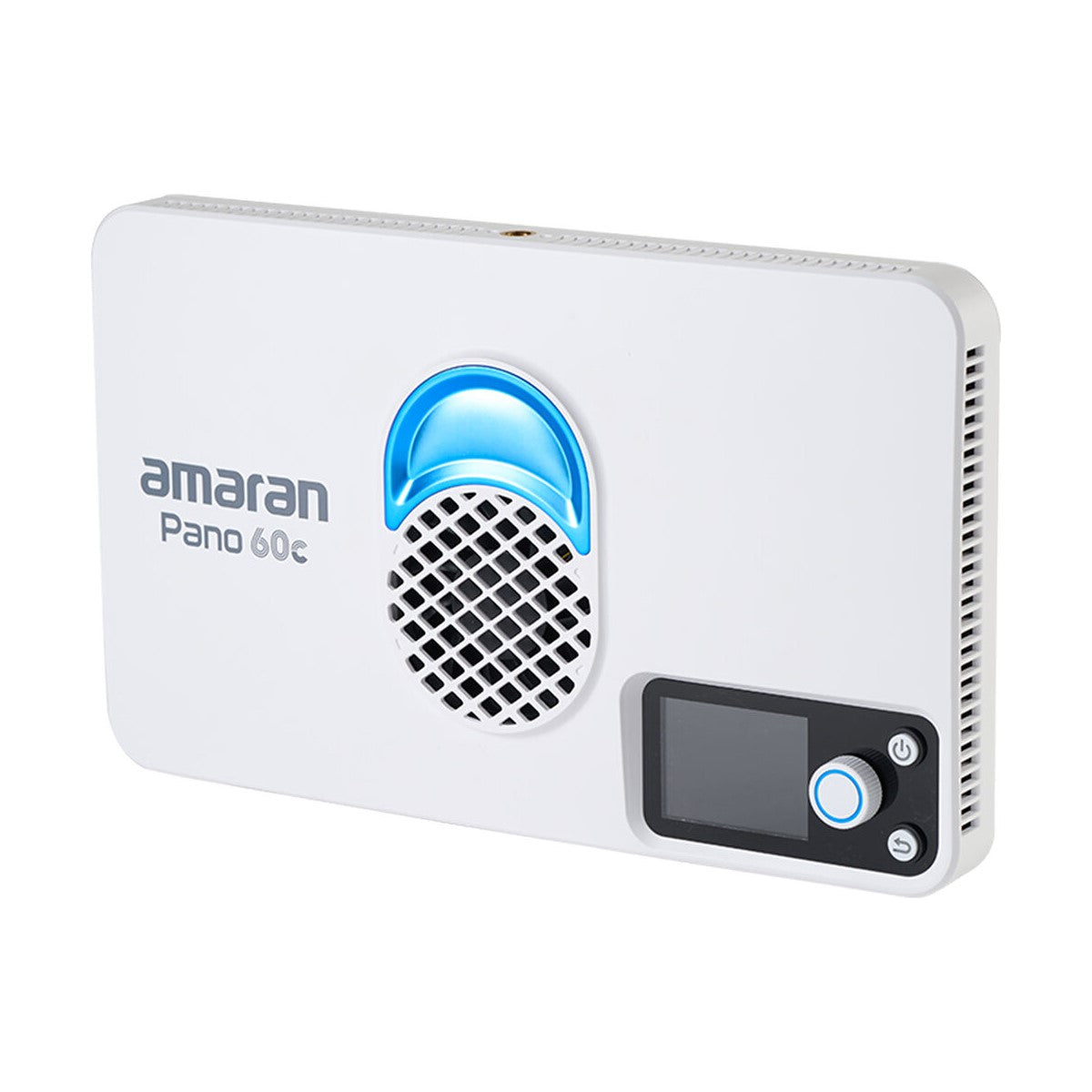

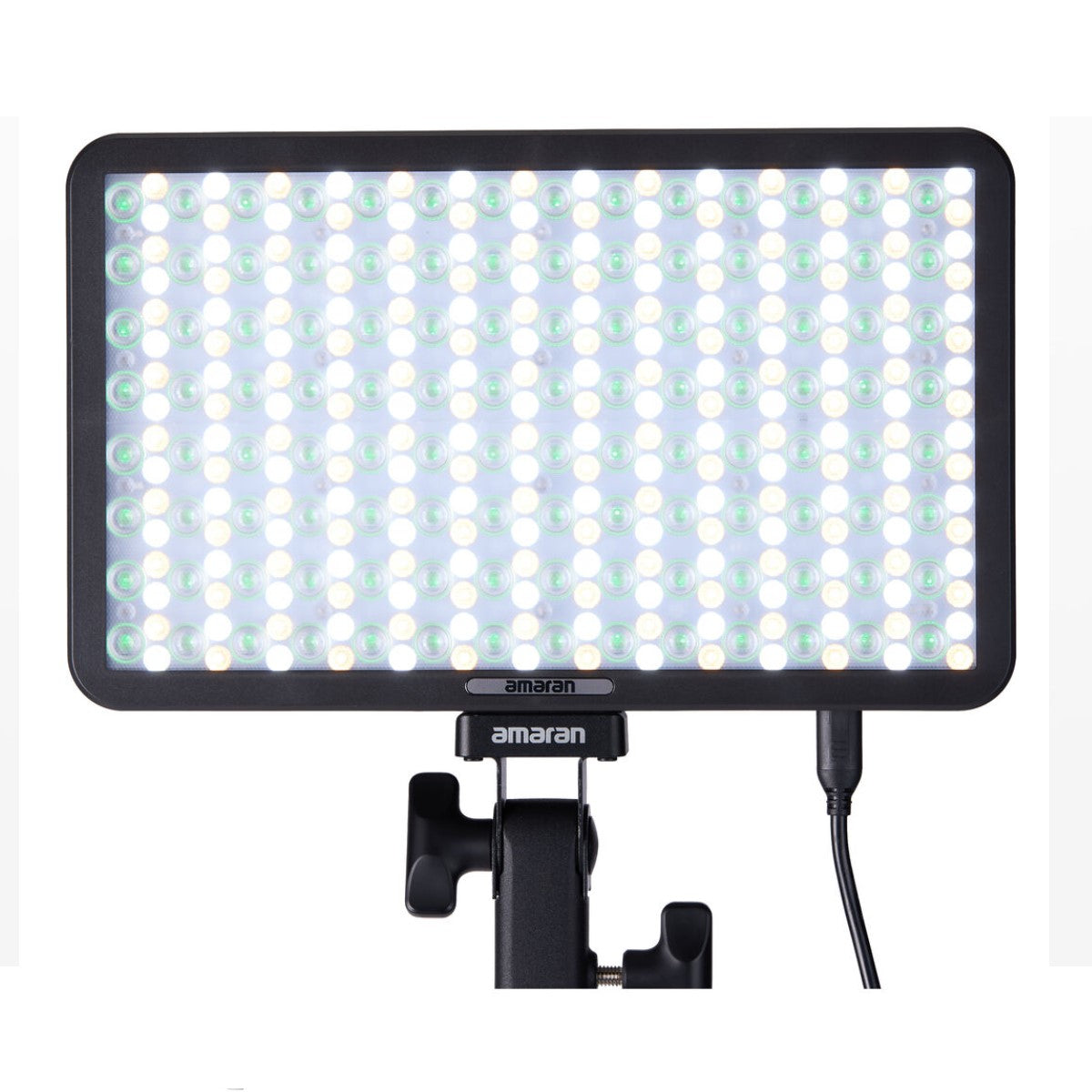

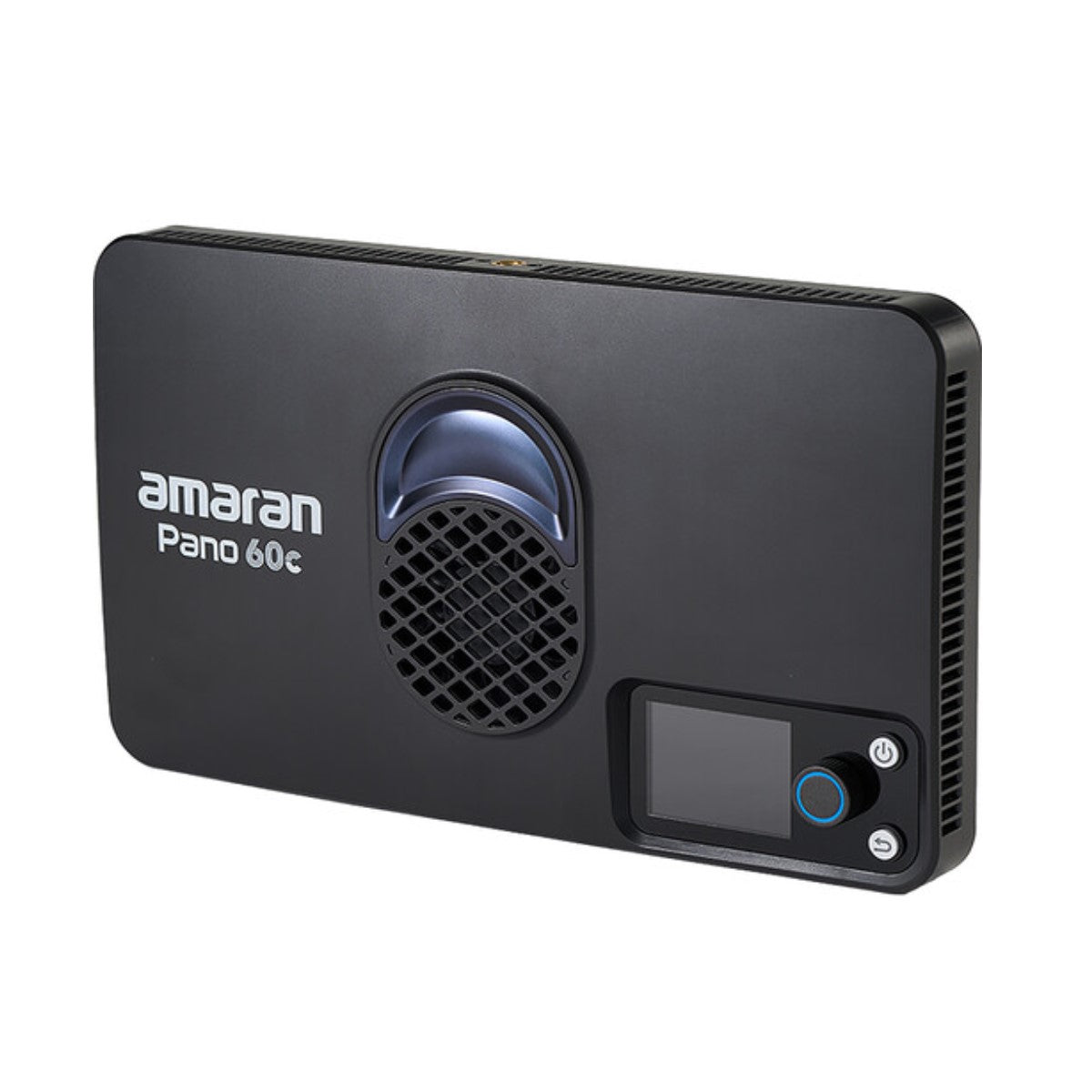

Amaran Pano 60c RGBWW LED Panel Kit: Tablet-sized 60W full-colour panel with softbox and grid
The Amaran Pano 60c RGBWW LED Panel Kit is a 60W RGBWW LED panel kit with a 2,300K to 10,000K range, USB-C PD power, cable-free E-Lock power from the amaran Peak, and a softbox, grid and diffuser in the box. Available from Amaran at Camerahaus.
Who Is This Made For?
The Pano 60c Kit is for creators and small studios who want a soft colour key light that packs flat.
Tablet-sized 60W panel
At 25.5 x 15.5 x 3 cm and 610 g the Pano 60c packs into a laptop bag and still gives 22,220 lux at 0.5m.
Full colour, wide CCT
An RGBWW chipset covers 2,300K to 10,000K plus HSI and RGB colour, with CRI 96 and TLCI 97.
USB-C PD power
The panel runs from the included 65W USB-C PD adapter or a compatible PD power bank.
Cable-free with amaran Peak
The Ace E-Lock lets the optional amaran Peak power bank lock directly onto the panel and power it at full output.
Quick controls
A colour screen with Quick Operation Mode and custom shortcuts gives fast access to brightness, CCT and saved settings.
Softbox and grid included
The Kit ships with a diffuser, softbox and 45° light control grid for soft or directional light.
Twelve effects
Built-in FX presets are available on the panel and in the amaran App or Sidus Link.
| Model Name | Amaran Pano 60c RGBWW LED Panel Kit |
| Key Features | |
| Max power output | 60W |
| Max power consumption | 65W (USB-C PD 3.0, 20V) |
| Max light output | 22,220 lux @ 0.5m |
| Luminous flux | 6,790 lm @ 5,600K; 6,190 lm @ 3,200K |
| CCT range | 2,300K to 10,000K |
| CRI / TLCI | 96 / 97 (TM-30 Rf 93 / Rg 101, SSI P3200 84 / D56 74) |
| Colour chipset | RGBWW; CCT, HSI, RGB and FX modes |
| Beam angle | 45° (same with light control grid) |
| Lighting effects | 12 built-in FX presets |
| Control | On-board (TFT screen, Quick Operation Mode, custom shortcuts), amaran App, Sidus Link; Bluetooth range ≤80m |
| Power input | USB-C PD (65W locking adapter in Kit); amaran Ace E-Lock for cable-free power from the amaran Peak power bank |
| Mounting | amaran Ace Lock; Ace Lock to light stand adapter included |
| Cooling | Fan cooling (near-silent) |
| Dimensions | 255 x 155 x 30 mm |
| Weight | 610 g |
| Softbox / grid | Softbox 315 x 205 x 105 mm, 260 g; light control grid 320 x 200 x 170 mm, 80 g |
| Operating temperature | -10°C to 40°C |
| Colour options (variants) | Charcoal, White |
| Whats in the Box | |
| 1 x amaran Pano 60c | |
| 1 x amaran Pano 60c Softbox | |
| 1 x amaran Pano 60c Light Control Grid | |
| 1 x amaran Pano 60c Diffuser | |
| 1 x amaran Ace Lock to Light Stand Adapter | |
| 1 x amaran 65W USB-C PD Locking Power Adapter | |
| 1 x amaran AC Power Cable | |
| 1 x amaran Pano 60c Kit Carrying Case |
