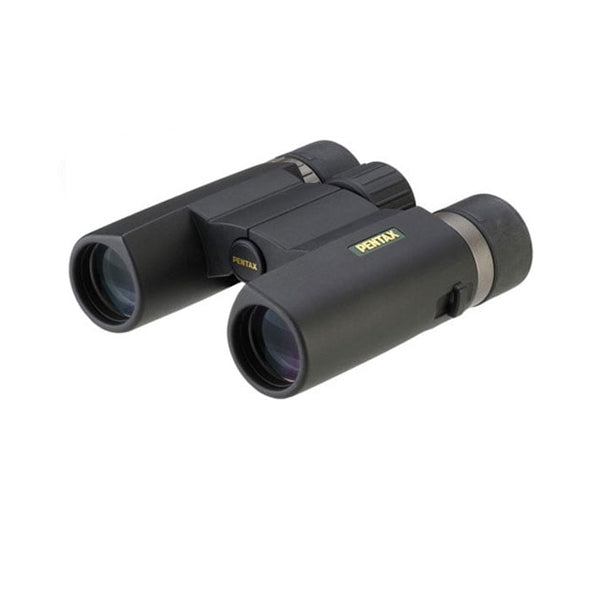

Pentax DCF LV 9x28: 9 x roof-prism binoculars
The Pentax DCF LV 9x28 is Pentax's 9 x roof-prism binoculars. Available from Pentax at Camerahaus.
Who Is This Made For?
The DCF LV 9x28 is for birders, hunters and sports fans who want a bright, waterproof view.
9 x magnification, 28mm objectives
Roof-prism center focusing (Inner focusing). Field of view 5.6° at 1,000 m.
Bright, clear view
Exit pupil 3.1mm, relative brightness 9.6. Fully multi-coated optics keep the image bright and contrasty.
Comfortable for glasses wearers
Eye relief 18mm with twist-up eyepiece rings.
Light enough to carry all day
Weight: approx. 365 g.
| Model Name | Pentax DCF LV 9x28 Binoculars |
| Key Features | |
| Type | Roof-prism center focusing (Inner focusing) |
| Lens construction: Objective lens | 3 elements in 2 groups |
| Lens construction: Eyepiece lens | 5 elements in 4 groups |
| Coating: Lens | Full Multi Coating |
| Coating: Roof-prism | Phase Coating |
| Coating: Sub prism | Super-refrection coating |
| Magnification | 9 x |
| Objective lens Diameter | 28mm |
| Real field of view | 5.6° |
| Apparent field of view | 50° |
| Field of view at 1000 m | 98 m |
| Field of view at 1000 yard | 294 ft |
| Exit pupil | 3.1mm |
| Eye Relief | 18mm |
| Relative Brightness | 9.6 |
| Diopter adjustment range | ± 4 m -1 |
| Diopter adjustment | Diopter ring with click stop |
| Eye Width adjustment range | 58 to 72mm 2.3 to 2.8inch |
| Focusing range | Approx 3 m to infinity 9.9 ft to infinity |
| Eyepiece ring | Helicoid eyepiece ring (4 click stop) |
| Body color | Black |
| Height & Width | 117 x 115 mm 4.6 x 4.5 inch |
| Thickness | 44 mm 1.8 inch |
| Weight | 365 g 12.9 oz |
| Waterproof | 1 m depth of water, Nitrogen filled |
| Whats in the Box | |
| Pentax DCF LV 9x28 Binoculars x1 | |
| Case x1 | |
| Strap x1 |
