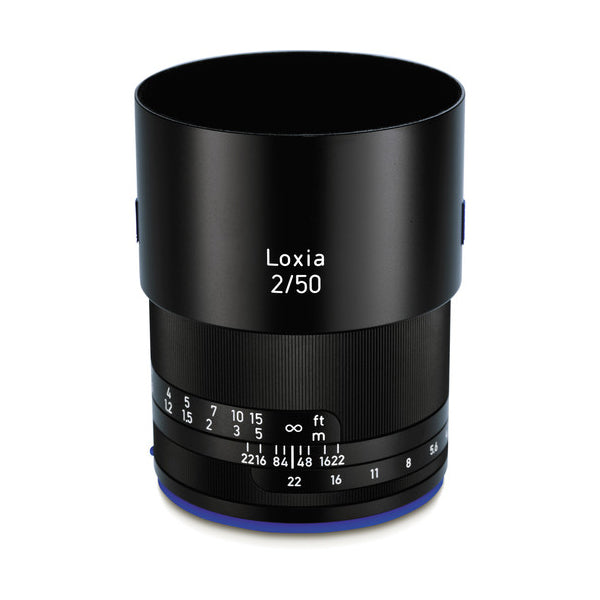

ZEISS Loxia 50mm F2: compact manual-focus full-frame lens for Sony E-mount
The ZEISS Loxia 50mm F2 is a compact manual-focus full-frame lens for Sony E-mount. The Planar lens design is the most successful - and most frequently copied - camera lens design of all time. Modifications to the tried-and-tested six-lens basic type ensure that it achieves the high imaging quality required by modern sensors. Available from ZEISS at Camerahaus.
Who Is This Made For?
The Loxia 50mm F2 is for photographers who focus by hand and want the highest image quality their camera can record.
The lens design
The Planar lens design is the most successful - and most frequently copied - camera lens design of all time. Modifications to the tried-and-tested six-lens basic type ensure that it achieves the high imaging quality required by modern sensors. Lenses with a Planar optical design enable consistent performance across a large range of image scales - the key requirement for universal macro-lenses.
50 mm, f/2
Focal length 50 mm with an aperture range of f/2 - f/22; 6 / 4 lens elements / groups; angle of view 47° diagonally.
Precise Manual Focus
Manually focusing a lens means controlling the image result from your fingertips. A good ergonomic design makes all the difference. ZEISS lenses stand out with their large rotation angle which enables precise focusing. Changes are immediately visible in the viewfinder. The high-quality focusing mechanism moves smoothly without play, thus also supporting the intuitive interaction with the focal plane.
DeClick Feature
One completely new feature of the Loxia lens is that you can 'declick' the aperture's locking mechanism using a tool (supplied) and an adjustment screw on the bayonet surface. This means that for video applications, you can smoothly eliminate any unwanted differences in brightness as you pan the camera. This feature can also be used with other video systems whose size makes them suitable for adaption.
Virtually Distortion-Free Optics
Dramatic perspectives and a view from extraordinary image angles - ZEISS lenses open up new composition possibilities. Distortion would disrupt the composition because straight lines, whose image does not go through the image center, would be reproduced with a curved shape. This annoying effect is accordingly and largely compensated through elaborate optical designs at all focal lengths.
Close focus
Focusing range 0.45 m (17.72") - ∞, for a maximum image ratio of 1:6.9.
Size, weight and filters
Weight 320 g (0.71 lbs). Length 59 mm (2.33") without caps, maximum diameter 43 mm (1.69"). Filter thread M52 x 0.75.
| Model Name | ZEISS Loxia 50mm F2 Lens for Sony E |
| Key Features | |
| Focal Length | 50 mm |
| Aperture Range | f/2 - f/22 |
| Camera Mount | Sony E-Mount |
| Format Compatibility | Full Frame |
| Focusing Range | 0.45 m (17.72") - ∞ |
| Free Working Distance | 0.37 m (14.57") - ∞ |
| Angle of View (diagonal / horizontal / vertical) | 47° / 39° / 27° |
| Diameter of Image Field | 43 mm (1.69") |
| Coverage at Closest Focus | 255 x 168 mm (10.04 x 6.63") |
| Maximum Image Ratio | 1:6.9 |
| Lens Elements / Groups | 6 / 4 |
| Flange Focal Distance | 18 mm (0.71") |
| Entrance Pupil Position (in front of image plane) | 49 mm (1.91") |
| Autofocus | No (manual focus) |
| Filter Thread | M52 x 0.75 |
| Rotation Angle of Focusing Ring | 180° |
| Maximum Diameter | 62 mm (2.44") |
| Diameter of Focusing Ring | 62 mm (2.44 ") |
| Length (With Lens Caps) | 66 mm (2.60") |
| Length (Without Lens Caps) | 59 mm (2.33") |
| Weight | 320 g (0.71 lbs) |
| Whats in the Box | |
| ZEISS Loxia 50mm F2 Lens for Sony E x1 | |
| Lens Shade x1 | |
| Front Lens Cap x1 | |
| Rear Lens Cap x1 |
