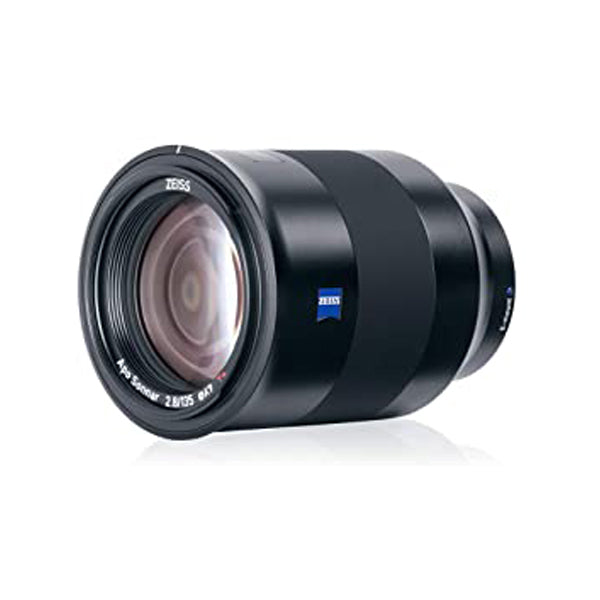

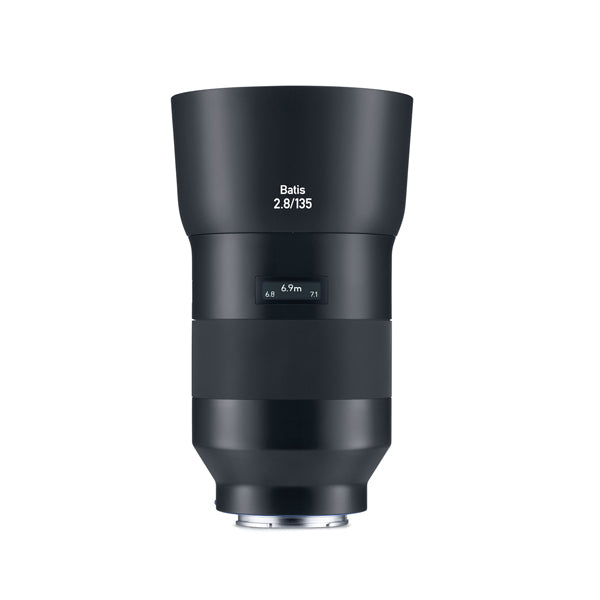

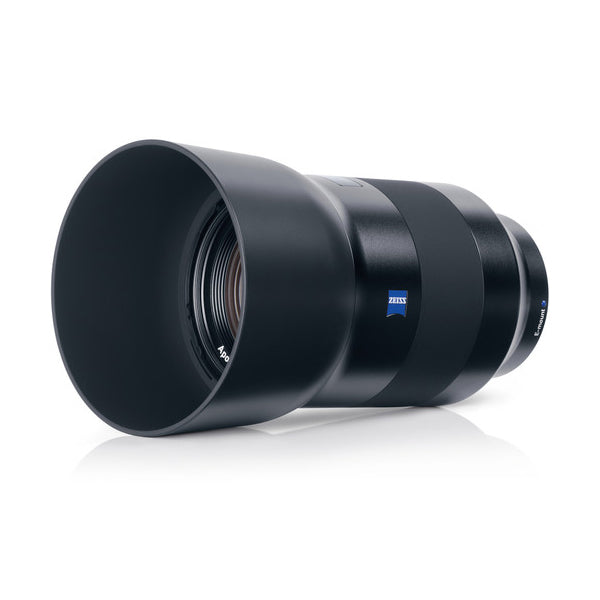

ZEISS Batis 135mm F2.8: autofocus full-frame lens for Sony E-mount
The ZEISS Batis 135mm F2.8 is an autofocus full-frame lens for Sony E-mount. A lens with relatively few glass-air surfaces, it was developed by Dr. Ludwig Bertele at ZEISS in 1930. At the time it was one of the fastest high-speed lenses for 35 mm photography, with apertures as large as 1:1.5 and high contrast thanks to effective stray light reduction. Available from ZEISS at Camerahaus.
Who Is This Made For?
The Batis 135mm F2.8 is for Sony mirrorless shooters who want ZEISS rendering with autofocus.
The lens design
A lens with relatively few glass-air surfaces, it was developed by Dr. Ludwig Bertele at ZEISS in 1930. At the time it was one of the fastest high-speed lenses for 35 mm photography, with apertures as large as 1:1.5 and high contrast thanks to effective stray light reduction. Its high speed and high contrast helped give the lens its name, which is derived from the word "sun," the symbol of maximum brightness.
135 mm, f/2.8
Focal length 135 mm with an aperture range of f/2.8 - f/22; 14 / 11 lens elements / groups; angle of view 18° diagonally.
Smooth and Reliable Autofocus
The design of the autofocus system requires an extremely accurate shifting of particular lens groups. The focusing system of ZEISS lenses is designed to ensure a robust and smooth-running autofocus mechanism with the best imaging performance.
Versatile Full-Frame Lenses
The powerful lens for the mirrorless full-frame system of Sony fulfills the highest requirements. Despite its compact design, the image meets the expectations of professional photographers.
Weather and Dust Sealing
Thanks to features that are designed to keep out dust and spray water, the lens is perfectly suited for critical outdoor conditions. It is also designed for many years of intensive use.
Close focus
Focusing range 0.87 m (34.25") - ∞, for a maximum image ratio of 1:5.3.
Size, weight and filters
Weight 614 g (1.4 lbs). Length 120 mm (4.7") without caps, maximum diameter 43 mm (1.69"). Filter thread M67 x 0.75.
| Model Name | ZEISS Batis 135mm F2.8 Lens for Sony E |
| Key Features | |
| Focal Length | 135 mm |
| Aperture Range | f/2.8 - f/22 |
| Camera Mount | Sony E-Mount |
| Format Compatibility | Full Frame |
| Focusing Range | 0.87 m (34.25") - ∞ |
| Free Working Distance | 0.74 m (29.13") - ∞ |
| Angle of View (diagonal / horizontal / vertical) | 18° / 15° / 10° |
| Diameter of Image Field | 43 mm (1.69") |
| Coverage at Closest Focus | 125 x 185 mm (4.9 x 7.3") |
| Maximum Image Ratio | 1:5.3 |
| Lens Elements / Groups | 14 / 11 |
| Flange Focal Distance | 18 mm (0.71") |
| Entrance Pupil Position (in front of image plane) | 6.9 mm (0.27") |
| Autofocus | Yes |
| Image Stabilization | Yes |
| Filter Thread | M67 x 0.75 |
| Rotation Angle of Focusing Ring | Focusing not Mechanically Coupled |
| Maximum Diameter | 98 mm (3.9") |
| Diameter of Focusing Ring | 81 mm (3.2") |
| Length (With Lens Caps) | 133 mm (5.2") |
| Length (Without Lens Caps) | 120 mm (4.7") |
| Weight | 614 g (1.4 lbs) |
| Whats in the Box | |
| ZEISS Batis 135mm F2.8 Lens for Sony E x1 | |
| Lens Shade x1 | |
| Front Lens Cap x1 | |
| Rear Lens Cap x1 |
