Key Highlights:
- Load (Kg):- Max/Folded(mm):
- Material:
- Net Weight:

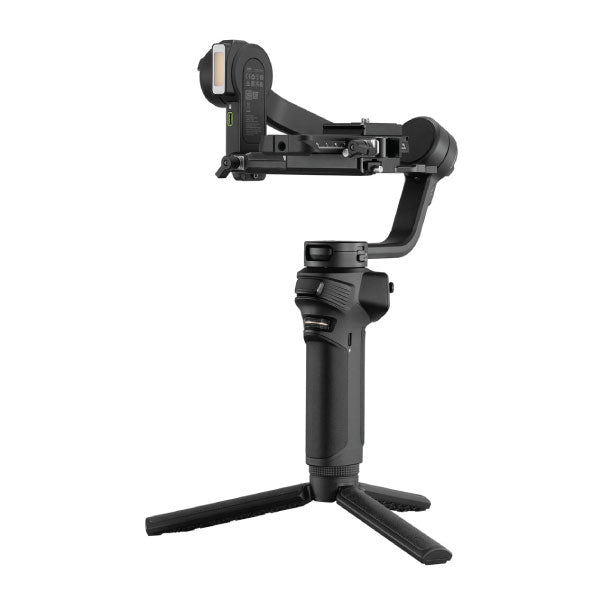

| Model Name | ZHIYUN Weebill 3S |
| Gimbal | |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Rotation Range | Mechanical Range |
| Yaw (Pan): 360° Unlimited | |
| Pitch (Tilt): 310° (-130 to 180°) | |
| Roll: 340° (-280 to 60°) | |
| Controllable Range | |
| Yaw (Pan): 360° | |
| Pitch (Tilt): 250° (-90 to 160°) | |
| Roll: 65° (-30 to 35°) | |
| Stabilization Accuracy | ±0.01 to 0.04° (Motionless) |
| ±0.05 to 0.3° (Motion) | |
| Compatibility | |
| Camera Control | On Compatible Models (See Full Compatibility List) |
| Camera Mounting Screw | 1x 1/4-20 Male |
| Connectivity | |
| Inputs/Outputs | 1x USB-C (1.6 A 9 VDC Power) Input |
| 1x USB-C (1 A 5 VDC Power) Output | |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: ZY Play | |
| Functionality: Adjust Settings, Remote Control | |
| Battery | |
| Battery Type | 2x 18650 |
| Battery Capacity | 2600 mAh |
| Battery Runtime | 11.5 Hours |
| Battery Charging Time | 2 Hours |
| Battery Chemistry | Lithium-Ion |
| Power | |
| Operating Voltage | 6.5 to 8.4 VDC |
| Operating Current | 150 to 5300 mA |
| General | |
| Display Type | Fixed Touchscreen OLED |
| Mounting | 1 x 1/4-20 Female |
| 1 x 1/4-20 Male | |
| Dimensions | 12 x 8.3 x 2.9 / 305 x 210 x 72.5 mm (Folded) |
| 12.1 x 7.1 x 6.36 / 306.4 x 181.4 x 161.63 mm (without Tripod) | |
| Weight | 2.4 lb / 1.1 kg |
| Packaging Info | |
| Package Weight | 4.195 lb |
| Box Dimensions (LxWxH) | 14.2 x 10.8 x 4.7 |
