| Model Name |
BRAVE 7 WaterproofCase B7 |
| |
BRAVE 7 |
| Image Sensor |
Size-Unspecified CMOS |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC [512 GB Maximum] |
| Still Image Support |
DNG / JPEG |
|
20 MP |
|
16 MP |
|
12 MP |
|
10 MP |
|
8 MP |
|
5 MP |
|
Show More |
| Display Type |
Fixed Touchscreen LCD |
| Image Stabilization |
Digital |
| Environmental Protection |
Advertised as Submersible to 16 / 4.9 m |
|
*Manufacturer Testing: IPX8 |
| Built-In Mic |
Yes |
| Video Output |
USB: |
|
3840 x 2160 at 30 fps |
|
2704 x 1520 at 30 fps |
|
1920 x 1080p at 30/60 fps |
|
1280 x 720p at 30/60 fps |
|
Show More |
| Microphone Input |
Via USB Adapter |
| Headphone Jack |
No |
| Battery |
Rechargeable Battery Pack, 1350 mAh |
|
Max Runtime: 1.8 Hours per Charge |
| Camera |
|
| Image Sensor |
Size-Unspecified CMOS |
| Sensor Resolution |
Not Specified by Manufacturer |
| Optics |
|
| Fixed Focus |
No |
| Angle of View |
Ultra Wide: 170° |
| Recording |
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC [512 GB Maximum] |
| Video Format |
3840 x 2160 at 30 fps (MP4 via H.264/AVC, H.265/HEVC) |
|
2704 x 1520 at 30 fps (MP4 via H.264/AVC, H.265/HEVC) |
|
1920 x 1080p at 30/60 fps (MP4 via H.264/AVC, H.265/HEVC) |
|
1280 x 720p at 30/60/120 fps (MP4 via H.264/AVC, H.265/HEVC) |
| Still Image Support |
DNG / JPEG |
|
20 MP |
|
16 MP |
|
12 MP |
|
10 MP |
|
8 MP |
|
5 MP |
| IP Streaming |
No |
| Display |
|
| Display Type |
Fixed Touchscreen LCD |
| Display Size |
2 |
| Secondary Display |
Front: Live-View Monitor |
| Exposure Control |
|
| Shooting Modes |
Burst Shooting |
|
Super Slow Motion Movie |
|
Time-Lapse Movie |
| Remote Control |
Included |
| Features |
|
| Image Stabilization |
Digital |
| Waterproof Depth Rating |
16.0 / 5.0 m (Camera) |
| Environmental Protection |
Advertised as Submersible to 16 / 4.9 m |
|
*Manufacturer Testing: IPX8 |
| IP Rating |
IPX8 |
| White Balance Modes |
Auto |
| Creative Effects |
Yes |
| Built-In Mic |
Yes |
| Built-In Light/Flash |
Light - No |
|
Flash - No |
| Wireless |
Wi-Fi |
| Accessory Shoe |
No |
| Tripod Mounting Thread |
No |
| Input/Output Connectors |
|
| Inputs |
1 x USB-C External Microphone |
| Video Output |
USB: |
|
3840 x 2160 at 30 fps |
|
2704 x 1520 at 30 fps |
|
1920 x 1080p at 30/60 fps |
|
1280 x 720p at 30/60 fps |
| Microphone Input |
Via USB Adapter |
| Headphone Jack |
No |
| General |
|
| Battery |
Rechargeable Battery Pack, 1350 mAh |
|
Max Runtime: 1.8 Hours per Charge |
| Dimensions (W x H x D) |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
| Packaging Info |
|
| Package Weight |
1.49 lb |
| Box Dimensions (LxWxH) |
10.3 x 4.4 x 2.8 |
| |
|
| |

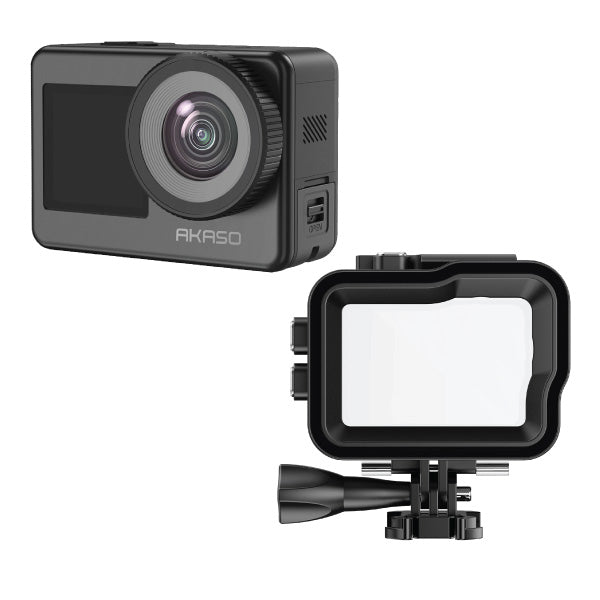

Waterproof Case for BRAVE7< |
| Compatible |
Brave 7 |
| Waterproof Depth |
Up to 30m-40m |
| Anti-fog |
Included |
| Warranty Notice |
Test the case before diving to make sure the seals are working properly. Ensure that the seal is clean and free of foreign objects such as hair, sand, oils, etc. before resealing. Because of possible user resealing error, AKASO Products will not be warrantied against waterproof case leakage or any resulting damage. Please review and follow the instructions carefully when sealing the waterproof case. |
| |
|
