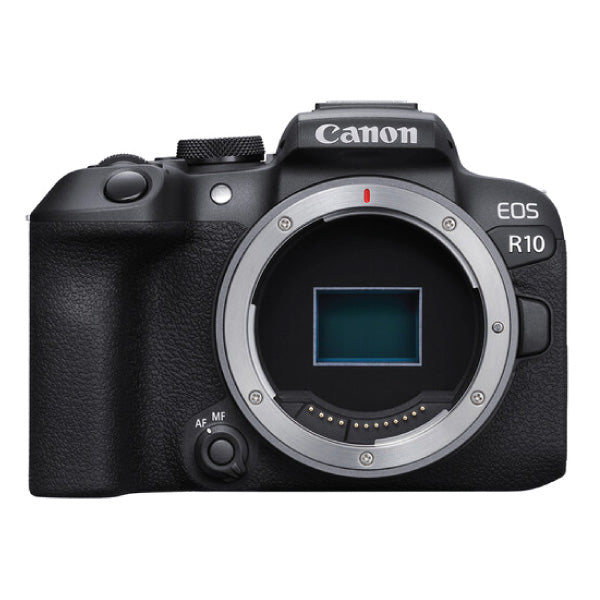

EOS R10 Body
Key Highlights:
- EOS R-Mount APS-C Body- Still Reso MP: 24mpx APS-C Sensor
- Video Reso: 4K Video 30p
- VF & LCD:
- Burst Depth:
| Model Name | Canon EOS R10 Mirrorless Camera Body Only |
| Lens Mount | Canon RF |
| Sensor Resolution | Actual: 25.5 Megapixel |
| Effective: 24.2 Megapixel | |
| Image Sensor | 22.3 x 14.9 mm (APS-C) CMOS |
| Image Stabilization | Digital (Video Only) |
| ISO Sensitivity Range | Photo |
| 100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200) | |
| Continuous Shooting | Electronic Shutter |
| Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 21 Frames (Raw) | |
| Mechanical Shutter | |
| Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 29 Frames (Raw) | |
| Internal Recording Modes | H.264/MP4 4:2:0 8-Bit |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps | |
| H.265/MP4 4:2:2 10-Bit | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps | |
| External Recording Modes | HDMI |
| 1920 x 1080p | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
| Audio I/O | 1x 1/8 / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input/Output |
| Other I/O | 1x USB-C (USB 2.0) Data Input/Output (Shared with Power Input) |
| 1x 2.5 mm Sub-Mini Control | |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
| Bluetooth 4.2 | |
| Display Type | Free-Angle Tilting Touchscreen LCD |
| Battery Type | 1x LP-E17 Rechargeable Lithium-Ion |
| Imaging | |
| Lens Mount | Canon RF |
| Sensor Resolution | Actual: 25.5 Megapixel |
| Effective: 24.2 Megapixel | |
| Image Sensor | 22.3 x 14.9 mm (APS-C) CMOS |
| Sensor Crop (35mm Equivalent) | Crop Factor: 1.6x |
| *Additional Crop Occurs in Select Video Modes | |
| Image Stabilization | Digital (Video Only) |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed | Mechanical Shutter |
| 1/4000 to 30 Seconds | |
| Electronic Shutter | |
| 1/4000 to 30 Seconds | |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity Range | Photo |
| 100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200) | |
| Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
| Precise Scan Rate Control | Yes |
| Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting | Electronic Shutter |
| Up to 23 fps at 24.2 MP for up to 70 Frames (JPEG) / 21 Frames (Raw) | |
| Mechanical Shutter | |
| Up to 15 fps at 24.2 MP for up to 460 Frames (JPEG) / 29 Frames (Raw) | |
| Interval Recording | Yes |
| Self-Timer | 2/10-Second Delay |
| Still Image Capture | |
| Image Sizes | 3:2 Raw |
| 24 MP (6000 x 4000) | |
| 3:2 JPEG | |
| 24 MP (6000 x 4000) | |
| 10.6 MP (3984 x 2656) | |
| 5.9 MP (2976 x 1984) | |
| 3.8 MP (2400 x 1600) | |
| 4:3 JPEG | |
| 21.3 MP (5328 x 4000) | |
| 9.5 MP (3552 x 2664) | |
| 5.3 MP (2656 x 1992) | |
| 3.4 MP (2112 x 1600) | |
| 16:9 JPEG | |
| 20.2 MP (6000 x 3368) | |
| 8.9 MP (3984 x 2240) | |
| 5 MP (2976 x 1680) | |
| 3.2 MP (2400 x 1344) | |
| 1:1 JPEG | |
| 16 MP (4000 x 4000) | |
| 7.1 MP (2656 x 2656) | |
| 3.9 MP (1984 x 1984) | |
| 2.6 MP (1600 x 1600) | |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | C-RAW, HEIF, JPEG, Raw |
| Video Capture | |
| Internal Recording Modes | H.264/MP4 4:2:0 8-Bit |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps | |
| H.265/MP4 4:2:2 10-Bit | |
| UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps | |
| 1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps | |
| External Recording Modes | HDMI |
| 1920 x 1080p | |
| Gamma Curve | HDR-PQ |
| Recording Limit | Up to 30 Minutes in 1080p HFR |
| Up to 120 Minutes | |
| Broadcast Output | NTSC/PAL |
| IP Streaming | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | MP4: 2-Channel AAC Audio |
| Interface | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
| Audio I/O | 1x 1/8 / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input/Output |
| Other I/O | 1x USB-C (USB 2.0) Data Input/Output (Shared with Power Input) |
| 1x 2.5 mm Sub-Mini Control | |
| Wireless | 2.4 GHz Wi-Fi 4 (802.11n) |
| Bluetooth 4.2 | |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Canon Camera Connect | |
| Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed | |
| Global Positioning (GPS, GLONASS, etc.) | GPS |
| *Via Connected Smartphone | |
| Monitor | |
| Display Size | 3.0 |
| Resolution | 1,040,000 Dot |
| Display Type | Free-Angle Tilting Touchscreen LCD |
| Viewfinder | |
| Type | Built-In Electronic (OLED) |
| Resolution | 2,360,000 Dot |
| Eye Point | 22 mm |
| Coverage | 1 |
| Magnification | Approx. 0.95x |
| Diopter Adjustment | -3 to +1 |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Photo, Video |
| Phase Detection: 651 | |
| Autofocus Sensitivity | -4 to +20 EV |
| Flash | |
| Built-In Flash/Light | Yes, Flash Only |
| Guide Number | 19.7 / 6 m at ISO 100 |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Shoe Mount |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
| General | |
| Battery Type | 1x LP-E17 Rechargeable Lithium-Ion |
| Shoe Mount | 1x Intelligent Hot Shoe |
| Tripod Mounting Thread | 1x 1/4-20 Female (Bottom) |
| Dimensions (W x H x D) | 4.8 x 3.5 x 3.3 / 122.5 x 87.8 x 83.4 mm |
| Weight | 13.5 oz / 382.2 g (Body Only) |
| 15.1 oz / 429.2 g (With Battery, Recording Media) | |
| Packaging Info | |
| Package Weight | 2.12 lb |
| Box Dimensions (LxWxH) | 11.5 x 8.2 x 6 |
