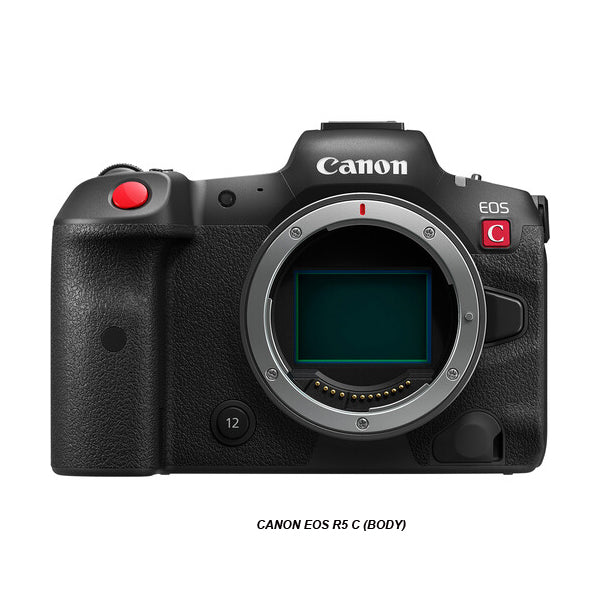

EOS R5C Cinema
Key Highlights:
- EOS R5C Cinema- Still Reso MP:
- Video Reso:
- VF & LCD:
- Burst Depth:
Model Name | EOS R5 C |
Lens Mount | Canon RF |
Sensor Resolution | Actual: 47.1 Megapixel |
Effective: 45 Megapixel (8192 x 5464) | |
Image Sensor | 36 x 24 mm (Full-Frame) CMOS |
Image Stabilization | Digital |
ISO Sensitivity Range | Photo |
100 to 51,200 in Manual Mode (Extended: 50 to 102,400) | |
100 to 12,800 in Auto Mode (Extended: 100 to 51,200) | |
Video | |
100 to 51,200 (Extended: 50 to 102,400) | |
Continuous Shooting | Mechanical Shutter |
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) | |
Electronic Shutter | |
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) | |
Internal Recording Modes | AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [160 to 810 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps [160 to 810 Mb/s] | |
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
AVC-LongG/MP4 4:2:2 10-Bit | |
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [400 to 540 Mb/s] | |
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [400 to 540 Mb/s] | |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [100 to 225 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/120 fps [100 to 225 Mb/s] | |
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
AVC-LongG/MP4 4:2:0 8-Bit | |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/120 fps [100 to 225 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 225 Mb/s] | |
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1920 x 1080p at 23.98/24.00/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
Cinema RAW Light/Raw 12-Bit | |
8192 x 4320 at 23.98/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s] | |
5952 x 3140 at 23.98/24.00/29.97/50/59.94 fps [544 to 1360 Mb/s] | |
2976 x 1570 at 23.98/24.00/25/29.97/50/59.94 fps [138 to 344 Mb/s] | |
External Recording Modes | 4:2:2 10-Bit via HDMI |
DCI 4K (4096 x 2160) up to 59.94 fps | |
UHD 4K (3840 x 2160) up to 59.94 fps | |
Media/Memory Card Slot | Slot 1: CFexpress Type B |
Slot 2: SD/SDHC/SDXC (UHS-II) | |
Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
Audio I/O | 1x 1/8 / 3.5 mm TRS Stereo Mic/Line Input |
1x 1/8 / 3.5 mm TRS Stereo Headphone Output | |
Power I/O | 1x USB-C (9VDC at 3 A) Input |
Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input) |
1x BNC (Timecode) Input/Output | |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control |
Display Type | Free-Angle Tilting Touchscreen LCD |
Battery Type | 1x LP-E6NH Rechargeable Lithium-Ion, 7.2 VDC, 2130 mAh (Approx. 220 Shots) |
or | |
1x /LP-E6N Rechargeable Lithium-Ion | |
or | |
1x LP-E6 Rechargeable Lithium-Ion | |
Show More | |
Imaging | |
Lens Mount | Canon RF |
Sensor Resolution | Actual: 47.1 Megapixel |
Effective: 45 Megapixel (8192 x 5464) | |
Image Sensor | 36 x 24 mm (Full-Frame) CMOS |
Sensor Crop (35mm Equivalent) | Crop Factor: 1x |
Additional Modes: 1.5x/1.6x/3x | |
*Additional Crop Occurs in Select Video Modes | |
Image Stabilization | Digital |
Built-In ND Filter | No |
Capture Type | Stills & Video |
Exposure Control | |
Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
Shutter Speed | Mechanical Shutter |
1/8000 to 30 Seconds | |
Electronic Front Curtain Shutter | |
1/8000 to 30 Seconds | |
Electronic Shutter | |
1/8000 to 0.5 Seconds | |
Bulb/Time Mode | Bulb Mode |
ISO Sensitivity Range | Photo |
100 to 51,200 in Manual Mode (Extended: 50 to 102,400) | |
100 to 12,800 in Auto Mode (Extended: 100 to 51,200) | |
Video | |
100 to 51,200 (Extended: 50 to 102,400) | |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Precise Scan Rate Control | Yes |
Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Metering Range | -3 to 20 EV |
White Balance | 2500 to 10,000K |
Presets: ATW, AWB, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent, Shade, Tungsten | |
Continuous Shooting | Mechanical Shutter |
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) | |
Electronic Shutter | |
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG) | |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Still Image Capture | |
Image Sizes | 3:2 JPEG / Raw |
44.8 MP (8192 x 5464) | |
22.5 MP (5808 x 3872) | |
11.6 MP (4176 x 2784) | |
3.8 MP (2400 x 1600) | |
4:3 JPEG / Raw | |
39.8 MP (7280 x 5464) | |
19.9 MP (5152 x 3872) | |
10.3 MP (3712 x 2784) | |
3.4 MP (2112 x 1600) | |
16:9 JPEG / Raw | |
37.7 MP (8192 x 4608) | |
19 MP (5808 x 3264) | |
9.8 MP (4176 x 2344) | |
3.2 MP (2400 x 1344) | |
1:1 JPEG / Raw | |
29.8 MP (5456 x 5456) | |
15 MP (3872 x 3872) | |
7.8 MP (2784 x 2784) | |
2.6 MP (1600 x 1600) | |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | C-RAW, HEIF, JPEG, Raw |
Bit Depth | 14-Bit |
Video Capture | |
Internal Recording Modes | AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [160 to 810 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps [160 to 810 Mb/s] | |
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
AVC-LongG/MP4 4:2:2 10-Bit | |
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [400 to 540 Mb/s] | |
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [400 to 540 Mb/s] | |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [100 to 225 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/120 fps [100 to 225 Mb/s] | |
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
AVC-LongG/MP4 4:2:0 8-Bit | |
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/120 fps [100 to 225 Mb/s] | |
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 225 Mb/s] | |
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1920 x 1080p at 23.98/24.00/29.97/50/59.94 fps [35 to 50 Mb/s] | |
1280 x 720 at 50/59.94 fps [8 to 12 Mb/s] | |
Cinema RAW Light/Raw 12-Bit | |
8192 x 4320 at 23.98/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s] | |
5952 x 3140 at 23.98/24.00/29.97/50/59.94 fps [544 to 1360 Mb/s] | |
2976 x 1570 at 23.98/24.00/25/29.97/50/59.94 fps [138 to 344 Mb/s] | |
External Recording Modes | 4:2:2 10-Bit via HDMI |
DCI 4K (4096 x 2160) up to 59.94 fps | |
UHD 4K (3840 x 2160) up to 59.94 fps | |
Fast-/Slow-Motion Support | Yes |
Gamma Curve | Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020 |
Recording Limit | No |
Broadcast Output | NTSC/PAL |
IP Streaming | No |
Built-In Microphone | Mono |
Audio Recording | Raw: 4-Channel |
MP4: 4-Channel | |
Interface | |
Media/Memory Card Slot | Slot 1: CFexpress Type B |
Slot 2: SD/SDHC/SDXC (UHS-II) | |
Video I/O | 1x Micro-HDMI (Unspecified Signal) Output |
Audio I/O | 1x 1/8 / 3.5 mm TRS Stereo Mic/Line Input |
1x 1/8 / 3.5 mm TRS Stereo Headphone Output | |
Power I/O | 1x USB-C (9VDC at 3 A) Input |
Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input) |
1x BNC (Timecode) Input/Output | |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control |
Mobile App Compatible | Yes: Android & iOS |
App Name: Canon Camera Connect | |
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed | |
Global Positioning (GPS, GLONASS, etc.) | GPS |
*Adapter Required or Via Connected Smartphone | |
Monitor | |
Display Size | 3.2 |
Resolution | 2,100,000 Dot |
Display Type | Free-Angle Tilting Touchscreen LCD |
Viewfinder | |
Type | Built-In Electronic (OLED) |
Size | 0.5 |
Resolution | 5,790,000 Dot |
Eye Point | 23 mm |
Coverage | 1 |
Magnification | Approx. 0.76x |
Diopter Adjustment | -4 to +2 |
Focus | |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Phase Detection: 1053 |
Autofocus Sensitivity | -6 to +20 EV |
Flash | |
Built-In Flash/Light | No |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Shoe Mount |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 85% |
General | |
Battery Type | 1x LP-E6NH Rechargeable Lithium-Ion, 7.2 VDC, 2130 mAh (Approx. 220 Shots) |
or | |
1x /LP-E6N Rechargeable Lithium-Ion | |
or | |
1x LP-E6 Rechargeable Lithium-Ion | |
Shoe Mount | 1x Hot Shoe |
Tripod Mounting Thread | 1x 1/4-20 Female (Bottom) |
Dimensions (W x H x D) | 5.6 x 4 x 4.4 / 142.2 x 101.6 x 111.8 mm |
Weight | 1.7 lb / 770 g (With Battery, Recording Media) |
1.5 lb / 680 g (Body Only) | |
Packaging Info | |
Package Weight | 3.205 lb |
Box Dimensions (LxWxH) | 9.5 x 7.9 x 7.9 |
