Model Name |

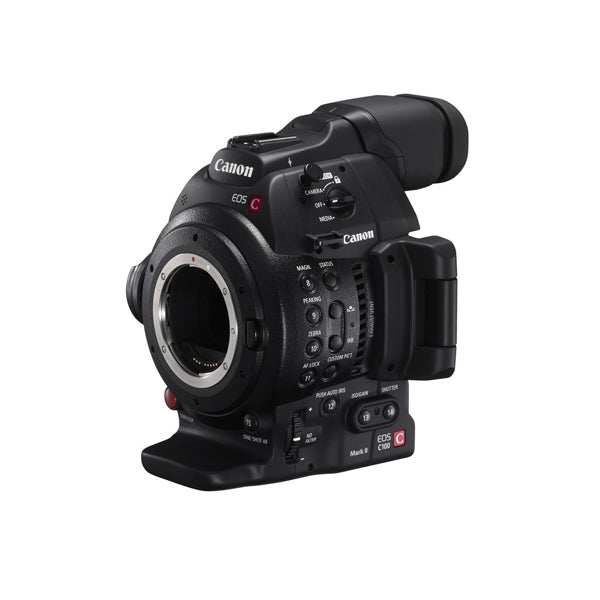

EOS C100 MKII Body |
Key Specs |
|
Lens Mount |
Canon EF |
Sensor Resolution |
Actual: 9.84 Megapixel (4206 x 2340) |
|
Effective: 8.29 Megapixel (4096 x 2160) |
Image Sensor |
24.6 x 13.8 mm (Super35) CMOS |
ISO Sensitivity Range |
320 to 102,400 |
Internal Recording Modes |
AVCHD 4:2:0 8-Bit |
|
1920 x 1080p from 23.98 to 60.00 fps [28 Mb/s] |
|
MP4 |
|
1920 x 1080p from 23.98 to 60.00 fps [35 Mb/s] |
|
Show More |
Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC |
Video I/O |
1x HDMI Output |
Mobile App Compatible |
|
|
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Battery Type |
Canon BP-9 Series |
Imaging |
|
Sensor |
Super 35mm CMOS (24.6 x 13.8 mm) (28.2 mm diagonal) |
Lens Mount |
Canon EF |
Lens Communication |
Yes, with Autofocus Support |
Total Pixels |
Approx. 9.84 megapixels (4206 x 2340) |
Effective Pixels |
Approx. 8.29 megapixels (3840 x 2160 pixels) |
Sensor Resolution |
Actual: 9.84 Megapixel (4206 x 2340) |
|
Effective: 8.29 Megapixel (4096 x 2160) |
Image Sensor |
24.6 x 13.8 mm (Super35) CMOS |
Processor |
DIGIC DV 4 |
Color Filter |
RGB Primary Color Filter (Bayer Array) |
Lens System |
|
Lens Mount |
Canon EF mount with EF contacts |
ND Filters |
Clear, 2 stops (1/4), 4 stops (1/16), 6 stops (1/64) |
Iris Dial |
Manual setting in 1/2-step increments, 1/3-step increments, or fine |
|
Push auto iris control |
Built-In ND Filter |
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
Peripheral Illumination Correction |
On supported Canon EF, EF-S, and Cinema lenses |
Exposure Control |
|
Exposure Modes |
Manual |
|
Push Auto Iris Control (metering system selection/AE shift possible) |
Capture Type |
Stills & Video |
Metering Modes |
Standard Center Weighted, Spotlight, Backlight |
Shutter Type |
Electronic Rolling Shutter |
Gain |
Normal: -6 to 30 dB TBD |
|
Fine: 0 to 24 dB, in 0.5 dB increments |
ISO Range |
320 to 102,400 in 1/3-step increments |
Shutter Speed |
1/2000 to 1/3 Second |
Shutter Modes |
OFF, ISO Speed, Shutter Angle, Slow Shutter, or Clear Scan |
|
|
|
Speed setting can be set in 1/2 or 1/3 stop increments |
Shutter Speed Range |
59.94i/: 1/60 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15, 1/30; CS: 59.94 Hz - 250.51 Hz |
|
|
|
PF30: 1/30 to 1/2000 in 1/4 or 1/3 stops; SLS: ¼, 1/8, 1/15; CS: 29.97 Hz - 250.51 Hz |
|
|
|
23.98p/PF24: 1/24 to 1/2000 in 1/4or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 23.98 Hz - 250.51 Hz |
|
|
|
50i: 1/50 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12 1/25; CS: 50.00 Hz - 250.51 Hz |
|
|
|
PF25: 1/25 to 1/2000 in 1/4 or 1/3 stops; SLS: 1/3, 1/6, 1/12; CS: 25.00 Hz - 250.51 Hz |
Shutter Angle Settings |
59.94i: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25 |
|
|
|
PF30: 360, 240, 216, 180, 120, 90, 60, 45, 30, 22.5, 15, 11.25 |
|
|
|
23.98p/PF24: 360, 345.6, 288, 240, 180, 172.8, 144, 120, 90, 86.4, 72, 60, 45, 30, 22.5, 15, 11.25 |
|
|
|
50i: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25 |
|
|
|
PF25: 360, 300, 240, 180, 150, 120, 90, 60, 45, 30, 22.50, 15, 11.25 |
ISO Sensitivity Range |
320 to 102,400 |
Focus Control |
|
Gain |
-6 to 30 dB (Expanded) |
|
0 to 24 dB (Native) |
Settings |
Manual |
|
One-Shot AF |
|
Continuous AF |
Shutter Angle |
11.25 to 360° |
Autofocus |
AF is dependent on interchangeable lenses |
|
Dual Pixel CMOS AF with Canon EF, EF-S, and Cinema lenses |
Video |
|
Signal System |
NTSC and PAL |
Recording Format |
Compression: MPEG-4, AVC/H.264, MP4 |
|
Maximum bit rate: AVCHD 28Mb/s, MP4 35Mb/s |
Frame Rates |
AVCHD |
|
1920 x 1080p: 59.94. 50, 23.98 |
|
1920 x 1080i: 59.94, 50 |
|
1920 x 1080PF: 29.97, 25 |
|
|
|
|
|
MP4 |
|
1920 x 1080p: 59.94, 50, 29.97, 25, 23.98 |
|
1280 x 720p: 29.97, 25, 23.98 |
|
640 x 360p: 29.97, 25, 23.98 |
Audio |
|
Audio Record Mode |
AVCHD |
|
28 Mb/s: Linear PCM; 2-Channel; 16-Bit; 48 kHz |
|
24 Mb/s: Linear PCM; 2-Channel; 16-Bit; 48 kHz |
|
All other modes: Dolby Digital AC3 |
Built-In Microphone |
Monaural microphone in camera body |
|
Stereo microphone in Handle Unit |
Audio Inputs |
2 x XLR on top handle (Auto and Manual level settings) |
|
1 x 3.5 mm terminal |
XLR Mic Trimming |
-12, -6, 0, +6, or +12 dB |
Limiter |
Available |
Audio Level Control |
Infinity to +18 dB, Automatic |
|
Separate controls for internal and externally connected microphones |
Phantom Power |
+48 V |
Headphone Output Level |
16 Settings; volume is muted at lowest setting |
Built-in Speaker |
Yes; 16 level settings |
Tone |
1 KHz tone available; -12, -18, or -20 dB |
Media |
|
Recording Media |
2 x SD/SDHC/SDXC card slots |
|
File system: FAT 32 |
Maximum Recording Time |
AVCHD |
|
8GB SD Memory Card |
|
28 Mb/s 1920 x 1080: 35 minutes |
|
24 Mb/s 1920 x 1080: 40 minutes |
|
17 Mb/s 1920 x 1080: 1 hour |
|
7 Mb/s 1440 x 1080: 2 hours 20 minutes |
|
|
|
16GB SD Memory Card |
|
28 Mb/s 1920 x 1080: 1 hour 15 minutes |
|
24 Mb/s 1920 x 1080: 1 hour 25 minutes |
|
17 Mb/s 1920 x 1080: 2 hours 5 minutes |
|
7 Mb/s 1440 x 1080: 4 hours 45 minutes |
|
|
|
32GB SD Memory Card |
|
28 Mb/s 1920 x 1080: 2 hours 30 minutes 24 Mb/s 1920 x 1080: 2 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 4 hours 10 minutes |
|
7 Mb/s 1440 x 1080: 9 hours 35 minutes |
|
64GB SD Memory Card |
|
28 Mb/s 1920 x 1080: 5 hours 24 Mb/s 1920 x 1080: 5 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 8 hours 20 minutes |
|
7 Mb/s 1440 x 1080: 19 hours 10 minutes |
|
|
|
128GB SD Memory Card |
|
28 Mb/s 1920 x 1080: 10 hours 10 minutes |
|
24 Mb/s 1920 x 1080: 11 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 16 hours 45 minutes |
|
7 Mb/s 1440 x 1080: 38 hours 25 minutes |
|
|
|
MP4 |
|
8GB SD Memory Card |
|
35 Mb/s 1920 x 1080: 30 minutes |
|
24 Mb/s 1920 x 1080: 40 minutes |
|
17 Mb/s 1920 x 1080: 1 hour |
|
4 Mb/s 1280 x 720: 4 hours 20 minutes |
|
3 Mb/s 640 x 360: 5 hours 40 minutes |
|
|
|
16GB SD Memory Card |
|
35 Mb/s 1920 x 1080: 60 minutes |
|
24 Mb/s 1920 x 1080: 1 hour 25 minutes |
|
17 Mb/s 1920 x 1080: 2 hours 5 minutes |
|
4 Mb/s 1280 x 720: 8 hours 40 minutes |
|
3 Mb/s 640 x 360: 11 hours 25 minutes |
|
|
|
32GB SD Memory Card |
|
35 Mb/s 1920 x 1080: 2 hours |
|
24 Mb/s 1920 x 1080: 2 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 4 hours 10 minutes |
|
4 Mb/s 1280 x 720: 17 hours 20 minutes |
|
3 Mb/s 640 x 360: 22 hours 55 minutes |
|
|
|
64GB SD Memory Card |
|
35 Mb/s 1920 x 1080: 4 hours |
|
24 Mb/s 1920 x 1080: 5 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 8 hours 20 minutes |
|
4 Mb/s 1280 x 720: 34 hours 45 minutes |
|
3 Mb/s 640 x 360: 45 hours 55 minutes |
|
|
|
128GB SD Memory Card |
|
35 Mb/s 1920 x 1080: 8 hours |
|
24 Mb/s 1920 x 1080: 11 hours 55 minutes |
|
17 Mb/s 1920 x 1080: 16 hours 45 minutes |
|
4 Mb/s 1280 x 720: 69 hours 30 minutes |
|
3 Mb/s 640 x 360: 91 hours 55 minutes |
Simultaneous REC./Relay REC. |
Yes |
Display |
|
Type |
3.5 / 8.9 cm, OLED |
|
640 x 480 |
|
922,000 pixels |
Adjustments |
Brightness, Contrast, Color, Sharpness, and Backlight (Normal or Bright) |
Viewfinder |
|
Type |
0.24 (0.61 cm) color |
|
960x540 resolution |
|
1,560,000 pixels |
Diopter Adjustment |
+2.0 to -5.5 |
Adjustments |
Brightness, Contrast, Color, and Backlight |
Type |
Built-In Electronic (LCD) |
Size |
0.24 |
Resolution |
960 x 540 (1,560,000 Dot) |
Diopter Adjustment |
-5.5 to +2 |
Inputs/Outputs |
|
HDMI Output |
1 x Type A |
Timecode |
Embedded in HDMI output |
Audio Input |
2 x Balanced 3-pin XLR on top handle unit |
|
1 x 3.5 mm input jack on main body |
Headphone Jack |
1 x 3.5mm stereo mini-jack |
Remote Terminal |
LANC compatible |
Video Capture |
|
USB |
1 x Mini-B USB 2.0 |
Internal Recording Modes |
AVCHD 4:2:0 8-Bit |
|
1920 x 1080p from 23.98 to 60.00 fps [28 Mb/s] |
|
MP4 |
|
1920 x 1080p from 23.98 to 60.00 fps [35 Mb/s] |
General |
|
White Balance |
Auto, Kelvin, Daylight, Tungsten, Set A, Set B |
|
White balance shift is available within Presets (-9 to +9) |
Sensor Crop Modes |
Super35 / APS-C |
Waveform Monitor |
2 Modes (Standard and RGB Component) |
Minimum Subject Illumination |
59.94 Hz: 0.3 lux |
|
50 Hz: 0.25 lux |
Fast-/Slow-Motion Support |
Yes |
Language Support |
English, Japanese, Simplified Chinese, German, Spanish, French, Italian, Polish, Russian, Korean |
Broadcast Output |
NTSC/PAL |
Power Supply |
7.4 V DC (battery pack: BP-955) |
|
8.4 V DC (DC IN) |
Operating Temperature |
Performance requirements |
|
32 - 104°F (0 - 40°C), 85% relative humidity |
|
Operating requirements: |
|
32 - 113°F (0 - 45°C), 60% relative humidity |
Dimensions |
Body with Thumb Rest: 5.3 x 6.7 x 5.1 in (13.5 x 17 x 12.9 cm) |
|
Body with Grip: 7.2 x 6.7 x 5.1 in (18.2 x 17 x 12.9 cm) |
|
W/ Thumb Rest and handle: 5.6 x 11.1 x 9.3 in (14.2 x 28.1 x 23.6 cm) |
|
W/ Grip and handle: 7.2 x 11.1 x 9.3 in (18.2 x 28.1 x 23.6 cm) |
Audio Recording |
2-Channel 16-Bit 48 kHz |
Weight |
Body only: approx. 2.2 lb (1.0 kg) |
|
Grip: approx. 8.1 oz (230 g) |
|
BP-955 Battery: 7.8 oz (220 g) |
IP Streaming |
No |
Battery Type |
Canon BP-9 Series |
Accessory Mounting Thread |
1x 1/4-20 |
|
1x |
Dimensions (W x H x D) |
7.2 x 11.1 x 9.3 / 18.2 x 28.1 x 23.6 cm |
Weight |
3.2 lb / 1.5 kg |
Interface |
|
Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC |
Video I/O |
1x HDMI Output |
Audio I/O |
2x XLR 3-Pin (+48 V Phantom Power) Input |
|
1x 1/8 / 3.5 mm TRS Stereo Input |
|
1x 1/8 / 3.5 mm TRS Stereo Headphone Output |
Power I/O |
1x Barrel Input |
Other I/O |
1x 2.5 mm Sub-Mini (LANC) Control Input |
|
1x Mini-USB |
Wireless |
Wi-Fi 4 (802.11n) |
Mobile App Compatible |
|
|
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Monitor |
|
Display Size |
3.5 |
Resolution |
1,230,000 Dot |
Display Type |
Articulating OLED |
Focus |
|
Focus Type |
Auto and Manual Focus |
Focus Mode |
Automatic, Manual Focus |
Environmental |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
