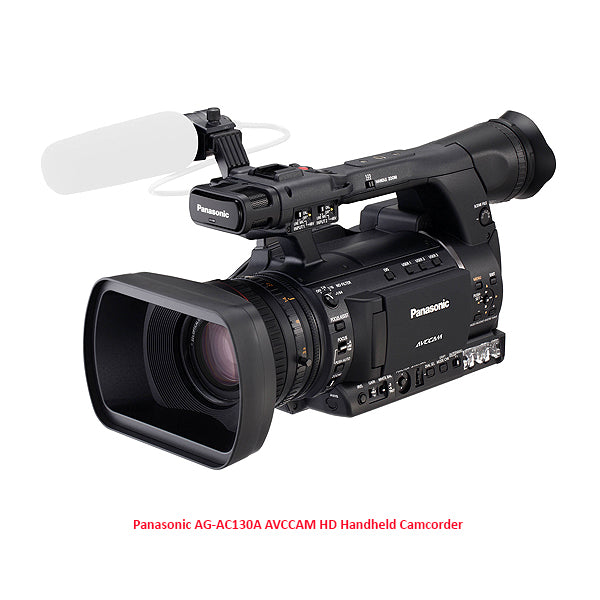

| Model Name | Panasonic AG-AC130A AVCCAM HD Handheld Camcorder |
| Image Device | 3x 1/3-type progressive 2.2 MP CMOS |
| Prism color separation | |
| Lens | 22x optical zoom |
| 2x, 5x, 10x digital zoom | |
| 3.9-86 mm (28-616 mm / 35 mm equivalent) | |
| f/1.6-3.2 | |
| 18 elements in 12 groups | |
| Minimum Object Distance (M.O.D.) | Approx. 3.3 (1 m) |
| Filter Diameter | 72 mm |
| Horizontal Resolution | Not specified by manufacturer |
| Sensitivity | Not specified by manufacturer |
| Minimum Illumination | 0.4 lux (f/1.6, gain +30 dB, shutter speed 1/30 second) |
| Vertical Smear | Not specified by manufacturer |
| Signal System | NTSC |
| Built-in Filters | ND filter: OFF, 1/4, 1/16, 1/64 |
| LCD Monitor | 3.45 (87.63 mm) color LCD monitor with approx. 921K dots (16:9) |
| Viewfinder | 0.45 (11.43 mm) color LCoS monitor with approx. 1226K dots (16:9) |
| Scan Matching | Not specified by manufacturer |
| Memory Card Slot | 2x SD/SDHC/SDXC slots |
| Shutter Speed | 60i mode: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second |
| 30p mode: 1/30, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second | |
| 24p mode: 1/24, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second | |
| Slow Shutter | 60i mode: 1/8, 1/15, 1/30 second |
| 30p mode: 1/8, 1/15 second | |
| 24p mode: 1/6, 1/12 second | |
| Synchro Scan Shutter | 60i mode: 1/60.0 to 1/249.8 second |
| 30p mode: 1/30.0 to 1/249.8 second | |
| 24p mode: 1/24.0 to 1/249.8 second | |
| Shutter Opening Angle | 3-359.5° in 0.5° increments |
| Frame Rates | 24, 30, 60 fps |
| Gain Selection | 0/+3/+6/+9/+12/+15/+18/+24/+30 dB (+24 dB, +30 dB: USER button S.GAIN only) |
| Recording Media | SD memory card (FAT12, FAT16 formats supported): 512 MB, 1 GB, up to 2 GB |
| SDHC memory card (FAT32 format supported): 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB | |
| SDXC memory card (exFAT format supported): 48 GB, 64 GB (up to 2 TB) | |
| Recording Formats | AVCHD standard (MPEG-4 AVC/H.264), DV standard (AVI Type2) |
| Maximum Recording Time | With 2x 64 GB SDXC cards: Approx. 12 hours in PH (highest-quality AVCHD); 48 hours in HE mode (lowest-quality AVCHD); 8.5 hours in DV mode |
| Signal-to-Noise Ratio | Not specified by manufacturer |
| Video Signals | PH mode: 1080/59.94i, 1080/29.97p, 1080/23.98pN, 720/59.94p, 720/29.97p, 720/23.98pN |
| PM mode: 720/59.94p | |
| HA/HE mode: 1080/59.94i | |
| DV mode: 480/59.94i, 480/29.97p, 480/23.98p | |
| Sampling Frequency | 4:2:0 (AVCHD) |
| 4:1:1 (DV) | |
| Quantization | Not specified by manufacturer |
| Video Compression | MPEG-4 AVC/H.264 (AVCHD) |
| DV (DV) | |
| Video Bitrates | PH mode: Approx. 21 Mb/s (VBR) |
| PM mode: Approx. 8 Mb/s (VBR) | |
| HA mode: Approx. 17 Mb/s (VBR) | |
| HE mode: Approx. 6 Mb/s (VBR) | |
| Interval Recording | 1 sec / 10 sec / 30 sec / 1 min / 2 min interval, maximum 168 hours (1 week) recording (PH 1080/24p mode is fixed) |
| Audio Signal | Dolby Digital 2-channel (AVCHD) |
| 48 kHz/16-bit, Linear PCM 2-channel (DV) | |
| Audio Bitrates | PH mode: 384 kb/s |
| PM/HA/HE mode: 256 kb/s | |
| Speaker | 1x 20 mm diameter |
| Video Outputs | HDMI: 1x HDMI Type A, VIERA Link not supported |
| Composite Video: 1x Pin jack, 1.0 V [p-p], 75 Ω | |
| Audio I/O | Input: |
| 2x XLR 3-pin (input 1, input 2) | |
| Line/Mic/+48V switchable | |
| Line: 0 dBu | |
| Mic: -40 dBu / -50 dBu / -60 dBu switching via menu | |
| Built-in Mic In supports stereo microphones | |
| Output: | |
| 2x pin jack (channel 1 / channel 2), 316mV, 600 ohm output | |
| 1x 3.5 mm diameter stereo mini jack for headphones | |
| Via HDMI: 2-channel (linear PCM) & 5.1-channel (Dolby Digital) | |
| Other I/O | Time Code Preset In/Out: Via Composite Video Out dual-purpose (In: 1V [p-p] to 4V [p-p], 10 k-ohm; Out: Low-impedance, 2.0±0.5V [p-p]) |
| Camera Remote: 1x 2.5 mm diameter super mini jack (zoom, shutter speed); 1x 3.5 mm diameter mini jack (focus, iris) | |
| Index Remote: 1x 2.5 mm diameter super mini jack | |
| IEEE 1394: 1x 6-pin, digital output only | |
| USB 2.0 (Device): 1x Type Mini B, 4-pin USB 2.0 | |
| Power Requirements | 7.2V DC via battery |
| 7.3V DC via AC adapter | |
| Power Consumption | 11.6W when recording |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10-80% (no condensation) |
| Dimensions | 7 x 7.69 x 17.25 (18 x 19.5 x 43.8 cm) excluding protrusions |
| Weight | Approx. 5.3 lbs (2.4 kg) excluding battery and accessories |
| Packaging Info | |
| Package Weight | 11.5 lb |
| Box Dimensions (LxWxH) | 19.6 x 15 x 12.5 |
