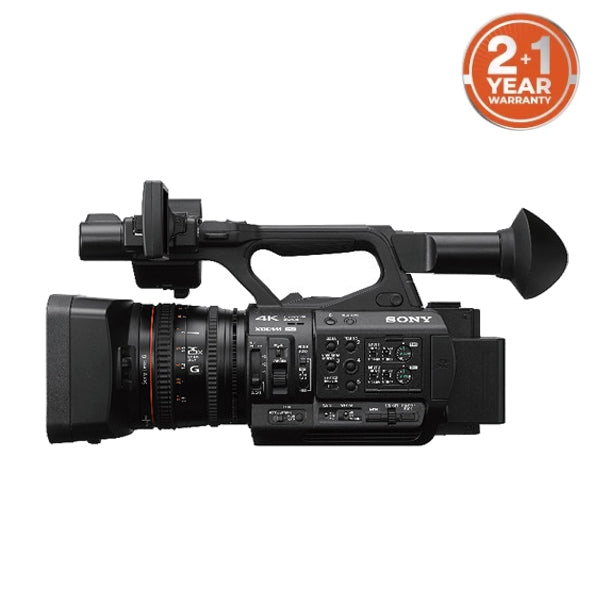

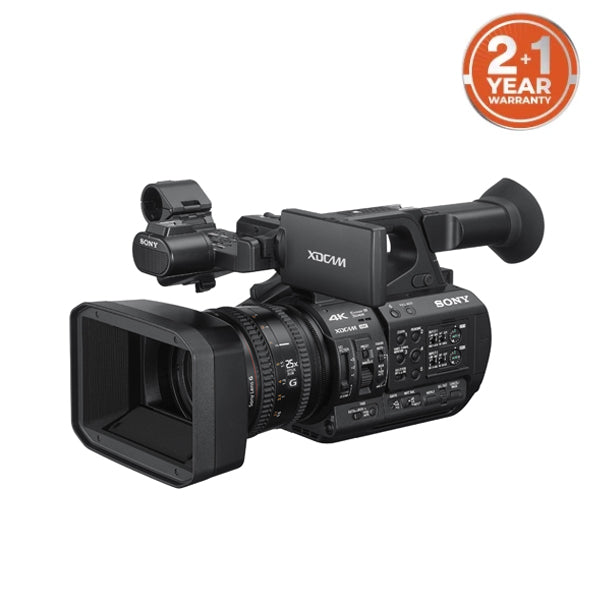

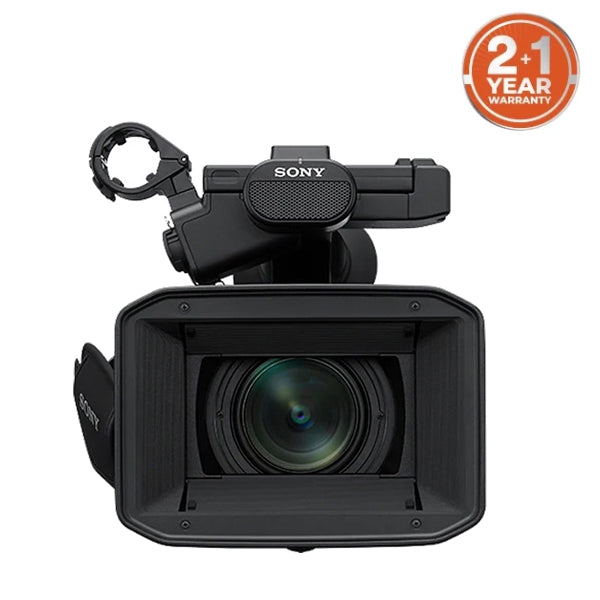

Sony PXW-Z190 4K XDCAM Camcorder
₱317,000.00
Sony PXW-Z190 4K XDCAM Camcorder: 4K camcorder
Sony PXW-Z190 4K XDCAM Camcorder is Sony's 4K camcorder. Available from Sony at Camerahaus.
Why buy from Camerahaus
Official Sony Warranty
Authentic & PH-backed
Pay via GCash / Card / Bank
Secure local payments
Store Pickup / Branch Pickup Available
Convenient handover
Find a Camerahaus near you →
See branches & service
No reviews yet
Be the first to share your thoughts on Sony PXW-Z190 4K XDCAM Camcorder.
Sony PXW-Z190 4K XDCAM Camcorder: 4K camcorder
Sony PXW-Z190 4K XDCAM Camcorder is Sony's 4K camcorder. Available from Sony at Camerahaus.
Who Is This Made For?
The PXW-Z190 is for event, wedding, news and corporate shooters who want long-form 4K with a built-in zoom.
4K video
1/3 type back-illuminated Exmor R 3CMOS sensor. Formats: <XAVC Long> XAVC-L QFHD mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC XAVC-L HD 50 mode: VBR.
Built-in zoom lens
Optical zoom: 25x.
Steady handheld footage
On/Off selectable, shift lens.
Reliable autofocus
800 mm to ∞ (Macro Off) 10 mm to ∞ (Macro On, Wide) 800 mm to ∞ (Macro On.
Made for long shoots
Handheld form factor with pro audio and connectivity for events, interviews and live work.
| Model Name | Sony PXW-Z190 4K XDCAM Camcorder |
| Key Features | |
| Important Note | PXW-Z190 is available from Sony as two SKUs. PXW-Z190V supports both 5 Ghz and 2.4 Ghz Wi-Fi. PXW-Z190T supports 2.4 GHz Wi-Fi. Availability is determined by |
| Mass | Approx. 2.3 kg (body) Approx. 5 lb 1.1 oz (body) Approx. 2.8 kg (with lens hood, eyecup, BP-U35 battery, a SD memory card) Approx. 6 lb 2.8 oz (with lens hood, eyecup |
| Dimensions (W x H x D) | 190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup) |
| Power Requirements | DC In: 12 V, Battery: 14.4 V Please use genuine Sony batteries to ensure correct and safe operation*1 |
| Power Consumption | Approx. 24 W (while recording with LCD Off, EVF On when the external device connector is not used.) Approx. 36 W (while recording with LCD On |
| Battery Operating Time | Approx. 1 hours, 20 minutes with BP-U35 battery (while recording with LCD Off, EVF On when the external device connector is not used) Approx. 1 hours |
| Operating Temperature | 0°C to 40°C 32°F to 104°F |
| Storage Temperature | -20°C to +60°C -4°F to +140°F |
| Recording Format (Video) | <XAVC Long> XAVC-L QFHD mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC XAVC-L HD 35 mode: VBR |
| Recording Format (Audio) | <XAVC Long> XAVC-L mode: LPCM 24-bit, 48 kHz, 4 channels <DVCAM> DVCAM mode: LPCM 16-bit, 48 kHz, 4 channels |
| Recording Frame Rate | <XAVC Long> XAVC-L QFHD 150 mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 50 mode: 1920 x 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P |
| Recording/Playback Time | <XAVC Long> XAVC-L QFHD 150 mode When using 128 GB memory card: Approx. 88 minutes XAVC-L HD 50 mode When using 128 GB memory card: Approx. 240 minutes XAVC-L HD 35 |
| Recording Format (Proxy Audio) | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
| Recording Format (Proxy Video) | XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9Mbps 1280 x 720, 9Mbps 1280 x 720, 6Mbps 640 x 360, 3Mbps 480 x 270, 1Mbps 480 x 270, 0.5Mbps |
| Lens Mount | Fixed type |
| Zoom Ratio | 25x |
| Focal Length | 3.7 mm to 92.5 mm (equivalent to 28.8 mm to 720 mm on a 35 mm lens) |
| Iris | Auto/manual swichable F1.6 to F11 and C (close) |
| Focus | 800 mm to ∞ (Macro Off) 10 mm to ∞ (Macro On, Wide) 800 mm to ∞ (Macro On, Tele) AF/MF/Full MF selectable |
| Image Stabilizer | On/Off selectable, shift lens |
| Filter Diameter | M 82 mm , pitch 0.75 mm |
| Imaging Device (Type) | 1/3 type back-illuminated Exmor R 3CMOS sensor |
| Effective Picture Elements | 3840 (H) x 2160 (V) |
| Optical System | F1.6 prism system |
| Built-in Optical Filters | ND filters OFF: CLEAR 1: 1/4ND 2: 1/16ND 3: 1/64ND Linear variable ND (Approx. 1/4ND to 1/128ND) |
| Sensitivity (2000 lx, 89.9% reflectance) | F11 (typical, 1920 x 1080/59.94p, High Sensitivity Mode) F12 (typical, 1920 x 1080/50p, High Sensitivity Mode) |
| Minimum Illumination | 0.01 lx (typical) (1920 x 1080/59.94i mode, F1.6, +30 dB gain, High Sensitivity Mode, with 64 frame accumulation) |
| S/N Ratio | 57 dB (Y) (typical) |
| Horizontal Resolution | 2,000 TV lines or more (3840 x 2160p mode) 1,000 TV lines or more (1920 x 1080p mode) |
| Shutter Speed | 1/24 sec to 1/8,000 sec |
| Slow Shutter (SLS) | 2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation |
| Slow and Quick Motion Function | <XAVC Long> 2160P: 1-60 fps 1080P: 1-60 fps 720P: 1-60 fps |
| White Balance | Preset (3200K), Memory A, Memory B/ATW |
| Gain | -3, 0, 3, 6, 9, 12, 15, 18 dB, 30 dB (Turbo Gain ON), AGC |
| Whats in the Box | |
| Lens hood x1 | |
| Pre-installed to the Camcorder EVF eyecup (1) Battery pack BP-U30 or U35 (1) AC Adaptor/charger BC-U1A (1) Power code (1) USB cable (1) Warranty booklet (1) "Before Using this Unit" (1) CDROM "Operating instructions" x1 |
