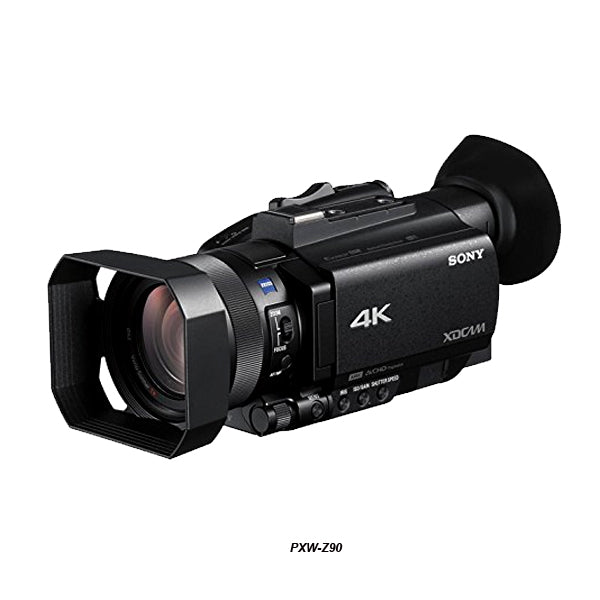

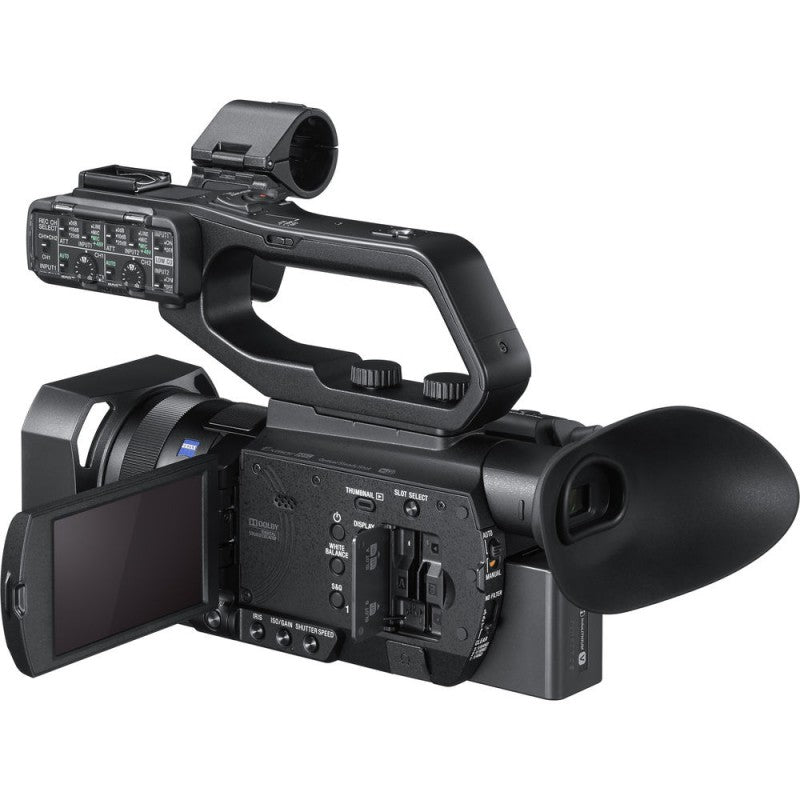

| Model Name | Sony PXW-Z90 4K Handheld Camcorder |
| Sensor Resolution | Effective: 14.2 Megapixel |
| Image Sensor | 1-Type CMOS |
| Image Stabilization | Optical in Integrated Lens |
| Internal Recording Modes | XAVC |
| 3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97 fps [60 to 100 Mb/s] | |
| 1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/240/250/480/500/1000 fps [35 to 50 Mb/s] | |
| 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] | |
| 1280 x 720 at 50/59.94 fps [50 Mb/s] | |
| AVCHD | |
| 1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/240/250/480/500/1000 fps [24 to 28 Mb/s] | |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC |
| Video I/O | 1x HDMI (Unspecified Signal) Output |
| 1x BNC (Composite) Output | |
| 1x BNC (3G-SDI) Output | |
| Mobile App Compatible | No |
| Battery Type | Sony V-Series |
| Imaging | |
| Sensor Resolution | Effective: 14.2 Megapixel |
| Image Sensor | 1-Type CMOS |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type | Video Only |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/6 Second |
| Gain | -3 to 33 dB |
| Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed |
| White Balance | 2300 to 15,000K |
| Lens | |
| Focal Length | 9.3 to 111.6mm (35mm Equivalent: 29 to 348mm) |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 48x |
| Minimum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Wide: 0.4 / 1.0 cm |
| Telephoto: 39.4 / 100.1 cm | |
| Filter Size | 62 mm |
| Control Rings | Focus |
| Zoom | |
| Focus Control | Autofocus |
| Manual Focus | |
| Video Capture | |
| Internal Recording Modes | XAVC |
| 3840 x 2160 at 1/2/3/4/6/8/12/15/23.98/25/29.97 fps [60 to 100 Mb/s] | |
| 1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/240/250/480/500/1000 fps [35 to 50 Mb/s] | |
| 1920 x 1080i at 50/59.94 fps [25 to 50 Mb/s] | |
| 1280 x 720 at 50/59.94 fps [50 Mb/s] | |
| AVCHD | |
| 1920 x 1080p at 1/2/3/4/6/8/12/15/23.98/25/29.97/50/59.94/100/240/250/480/500/1000 fps [24 to 28 Mb/s] | |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | H.264, RTMP, RTMPS |
| 1280 x 720 (3.0 Mb/s) | |
| 640 x 360 (1.0 Mb/s) | |
| Interface | |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC |
| Video I/O | 1x HDMI (Unspecified Signal) Output |
| 1x BNC (Composite) Output | |
| 1x BNC (3G-SDI) Output | |
| Audio I/O | 1x 1/8 / 3.5 mm TRS Stereo Headphone Output |
| 2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input | |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x Micro-USB |
| 1x Micro-USB Control | |
| 1x 2.5 mm Sub-Mini (LANC) Control | |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) |
| NFC | |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |
| Display Type | Articulating Non-Touchscreen LCD |
| Display Size | 3.5 |
| Resolution | 1,560,000 Dot |
| Viewfinder | |
| Type | Built-In Electronic (OLED) |
| Size | 0.39 |
| Resolution | 2,360,000 Dot |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Environmental | |
| Storage Temperature | -4 to 40°F / -20 to 60°C |
| General | |
| Battery Type | Sony V-Series |
| Power Consumption | 6.9 W |
| Shoe Mount | 1x Cold Shoe |
| Tripod Mounting Thread | 1/4-20 Female |
| Dimensions (W x H x D) | 5.1 x 7.1 x 11.3 / 130 x 181.5 x 287 mm |
| Weight | 2.2 lb / 1020 g |
| Packaging Info | |
| Package Weight | 4.955 lb |
| Box Dimensions (LxWxH) | 10.25 x 9.7 x 6 |
